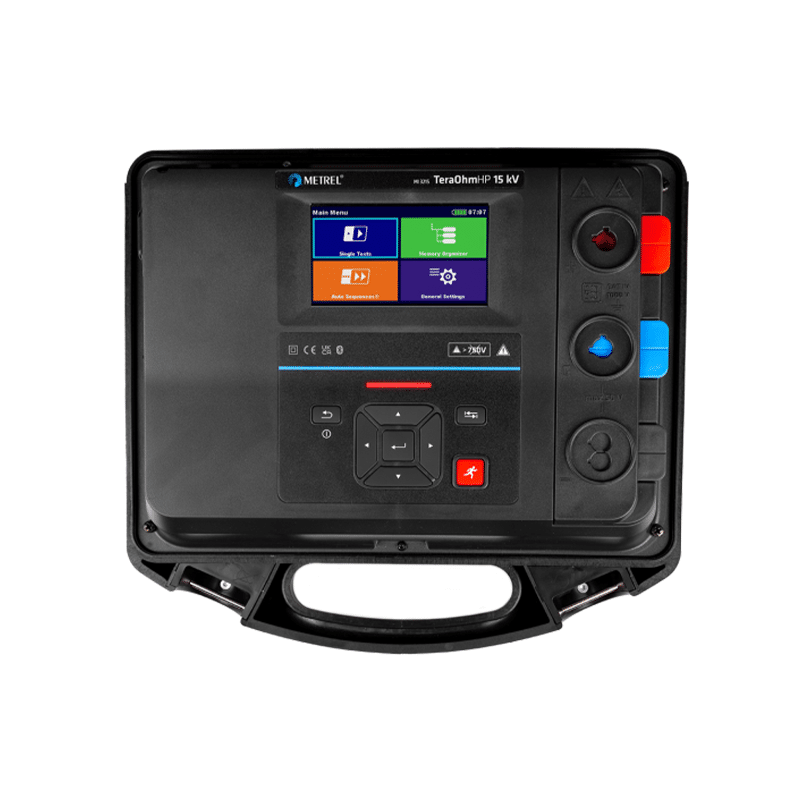

Metrel MI 3215 TeraOhmHP 15 kV High Voltage Insulation Tester

DescriptionMetrel MI 3215 TeraOhmHP 15 kV High Voltage Insulation TesterProduct Description:The Metrel MI 3215 TeraOhmHP 15 kV is a high-power, portable insulation resistance tester designed for precise and reliable testing in demanding industrial environments. This instrument is engineered for high DC test voltages of up to 15 kV, making it ideal for testing insulation resistance in renewable energy sources, power distribution systems, transformers, and long cables. Its robust, dual-case construction, coupled with a high IP65 rating, ensures the tester’s durability and protection against dust and water. It offers a range of advanced features, including adjustable test voltages, high voltage breakdown detection, and a large 8 GB memory SD card for storing results. The tester is powered either by a rechargeable Li-ion battery (4400 mAh) or mains supply, offering flexibility in different field conditions. The user-friendly interface, touch screen or key manipulation, and intuitive LCD menu make operation straightforward, while the added high EM interference protection ensures accurate measurements in electrically noisy environments.Key Features:Insulation resistance measurements of up to 35 TΩ with adjustable test voltage (50 V to 15 kV) in 50 V and 100 V increments.Safety rated up to CAT IV 1000 V for testing at distances up to 3000 meters, ensuring robust protection in high-voltage environments.Dual-case design for enhanced durability and reliability in harsh environments.Coded banana connectors with locking feature and newly designed HV crocodile clips for secure and reliable connections.Li-ion battery (4400 mAh) for extended operational time, with both mains and rechargeable battery power supply options.Fast charging rate for capacitive loads (<4 s/μF at 15 kV) and efficient discharging (<1.6 s/μF at 15 kV with mains supply).8 GB memory SD card for storing data and results, with MESM software for easy download, analysis, and test report generation.Programmable timers and AUTO SEQUENCEs for automated and consistent testing procedures.High voltage breakdown detection and burn or breakdown modes for improved safety and performance monitoring.Automatic discharge of the test object after measurement completion for enhanced safety.Live voltage detection (>30 V) to alert users of potential hazards during testing.High quality, shielded test leads designed to provide better grip and high voltage protection.High EM interference protection with AC current noise rejection of 8 mA and voltage noise rejection of 1.5 kV to ensure accurate readings in noisy environments.Averaging of results (5, 10, 30, 60) for improved accuracy in measurements.Results displayed in both numerical and graphical formats for easy interpretation.Isolated RS-232, USB communication ports, and Bluetooth interface for seamless data transfer and device connectivity.What’s Included:MI 3215 TeraOhmHP 15 kV InstrumentA 1794 3M HV test lead, 3m, Black banana plug/Crocodile clip – Shielded, 15 kVA 1795 3M HV test lead, 3m, Blue banana plug/Crocodile clip – 15 kVA 1793 3M HV test lead, 3m, Red banana plug/Crocodile clip – 15 kVA 1728 Power cable, 2m, 3×0.75mm², IEC C13/Type E connectorA 1727 USB cable Type A/BA 1772 Soft carrying bag, Size: XXLMetrel ES Manager BASIC LicenceSW 1201 Metrel ES Manager (program installation)Short form instruction manualCalibration certificate
