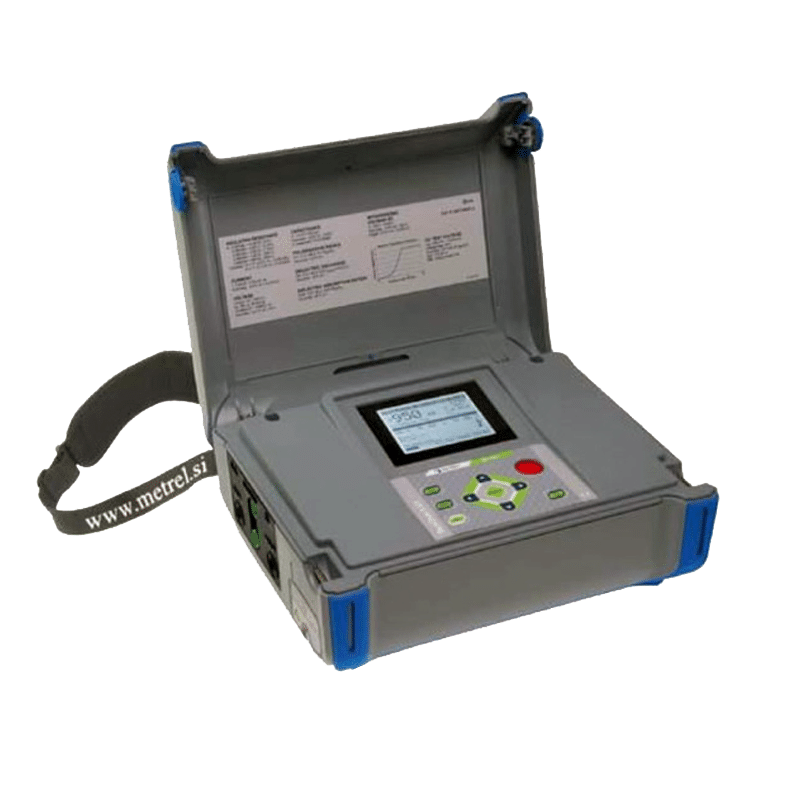

Metrel MI3201 TeraOhm Plus 5kV Insulation Tester

DescriptionMetrel MI3201 TeraOhm Plus 5kV Insulation TesterProduct Details:The Metrel MI 3201 TeraOhm 5 kV Insulation Tester is a portable instrument designed for measuring insulation resistance using high voltage DC test voltages up to 5 kV. Its large LCD screen enables the display of real-time R(t) graphs, and results can be stored and transferred to a computer via USB and RS232 connections using the optional Metrel TeraLink PRO software. The high-quality instrument, shielded test leads, and included accessories ensure efficient and reliable testing.Key Features:Automated Testing: Performs PI, DD, and DAR calculations with automated resistance ranging (AR), displaying all relevant data in a single measurement.Fault Diagnosis: Features programmable step voltage and withstanding voltage tests to help identify insulation faults.R(t) Graph: Provides real-time resistance versus time graph plotting to visually represent material responses to applied test voltages.Faster Testing: Delivers a high 5 mA charging current for quick charging of capacitive loads.Accurate Results: Equipped with selectable noise rejection filters (up to 5 mA) and shielded cables for precise measurements.Safety: Offers CAT IV/600 V voltage protection for high safety standards.Portable Design: Weighs only 3 kg and includes a carry handle and shoulder strap for easy transport.Applications for the Metrel MI 3201 TeraOhm:Insulation resistance testing of rotating machinery and cables.Periodic testing and maintenance in production environments.Troubleshooting and analysis of insulation problems.Diagnostic testing across various insulation issues.
