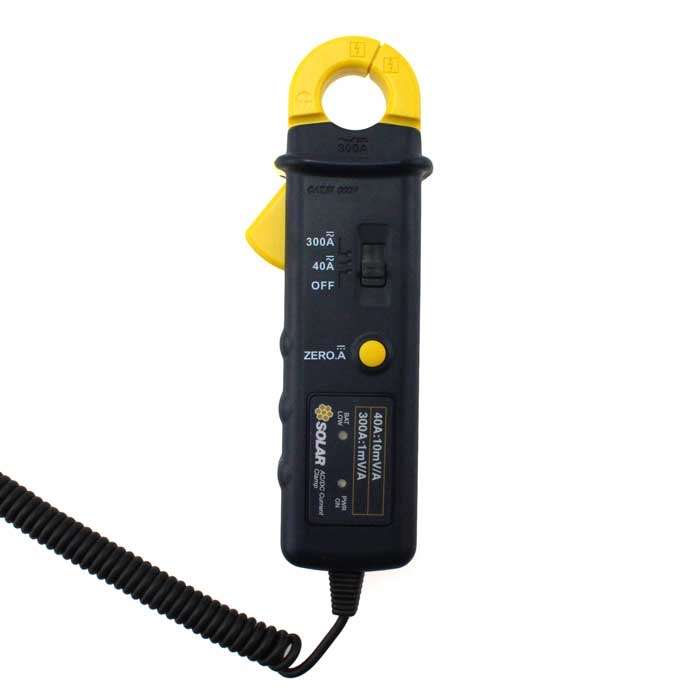

Seaward Solar AC/DC Current Clamp Transducer – 0 to 40A, 0 to 300A, Cat III 600V. 396A951

The Seaward Solar AC/DC PV Current Clamp Adaptor is suitable for Seaward Solar PV testers including the PV150 and PV200. It is capable of measuring AC/DC current from 0A to 300A with an output of 10mV / A up to 40A and 1mV / A up to 300A. AC/DC current measurement has an accuracy of ±1.9% ± 2A.Measurements are taken via the 22mm moveable jaw clamp and the range is chosen using a simple switch on the front of the clamp. A green LED indicates that the power is on and a red LED indicates low battery. A zero function is available thanks to a push button. The clamp is easy to connect to the PV tester and is attached via a lengthy coiled cable.The Seaward Solar PV Clamp Adaptor is supplied by a 9V battery and has a battery life of 66 hours. It has an overvoltage category rating of Cat III 600V. It comes supplied with a soft carry case.Seaward part number: 396A951Key Features:AC/DC current range: 0 to 40A, 0 to 300AAC/DC current resolution: 10mV/A (40A); 1mV/A (300A)AC/DC current accuracy: ±(1% 0.2A) ≤40A; ±(1% 1A) ≤200A; ±(1.9% 2A) ≤300A22mm moveable jaw clampManual rangingZero functionCompatible with Seaward Solar PV150 and PV20066-hour battery lifeCat III 600VWhat’s In The Box?Seaward Solar AC/DC PV Current Clamp AdaptorSoft carry caseInstruction manual9V battery
