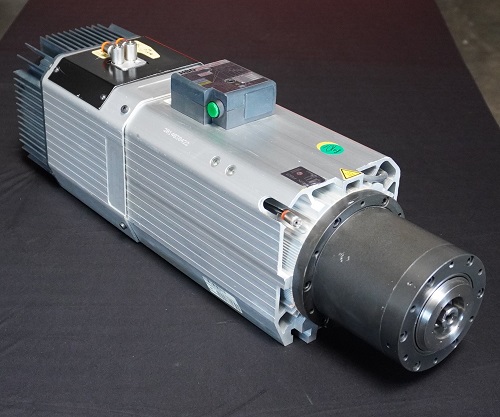

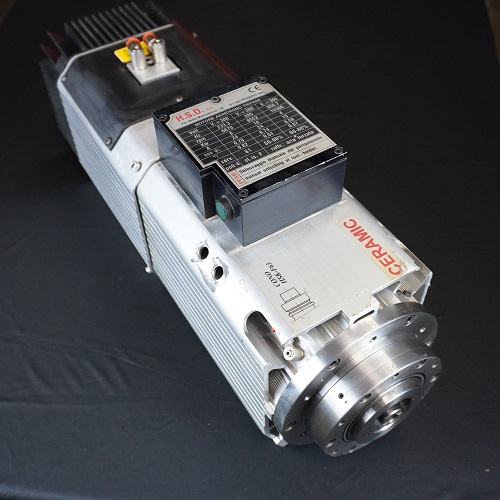

HSD Spindle, ES 988A, H1423H0198

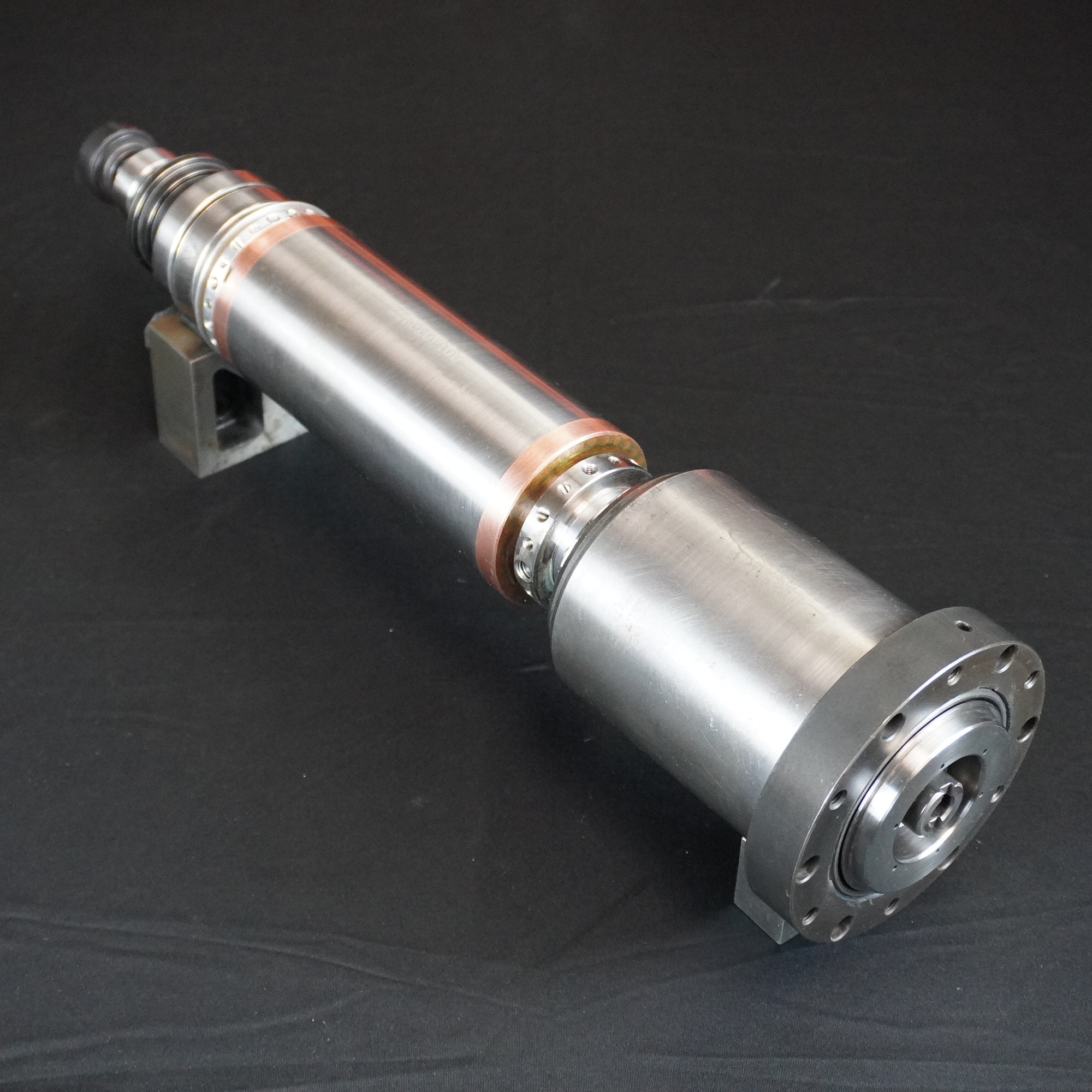

HSD Spindle, Long Nose, 13.5kW, 380V 1 week deliveryThis 2014 spindle is completely refurbished. It has new bearings with ceramic balls and new sensors.  It is rated at 24,000 rpm. This is an authentic HSD motor not a Chinese knock-off. Comes with a one year warranty. Two year warranty is available on bearings ($600 extra). Clamp Group: HSK 63F Model: ES 988A Mounting: T-SlotsHSK 63F Specs: Maximum collet size is ER40. The maximum tool shank is 30mm or 1.1875″. Maximum Speed: 24,000 rpm Run-out: <.0002″ S1 Horsepower: 15 hp   (11 kW) S6 Horsepower: 18 hp   (13.5 kW) Voltage: 380V, 4 Pole motor. Cooling Method: Fan (230 VAC) Country of Origin: Italy Weight: 39 kg
